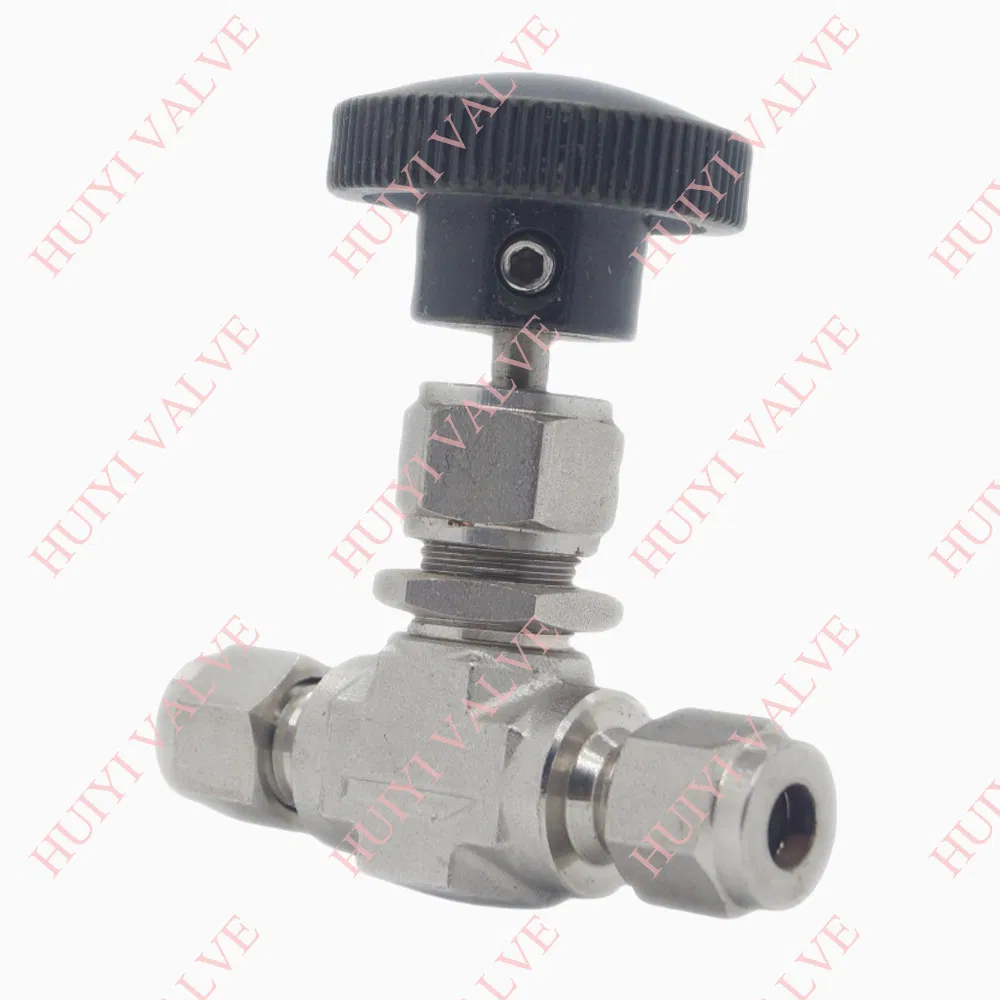

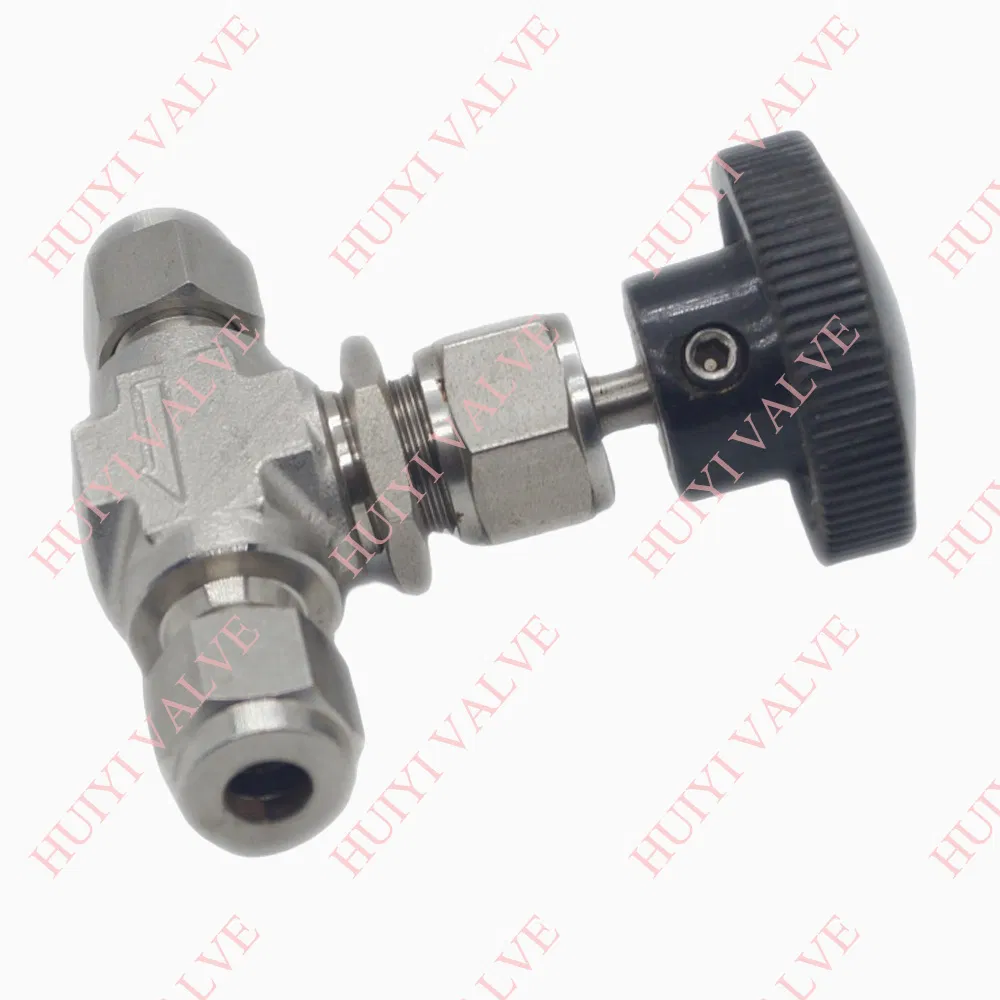

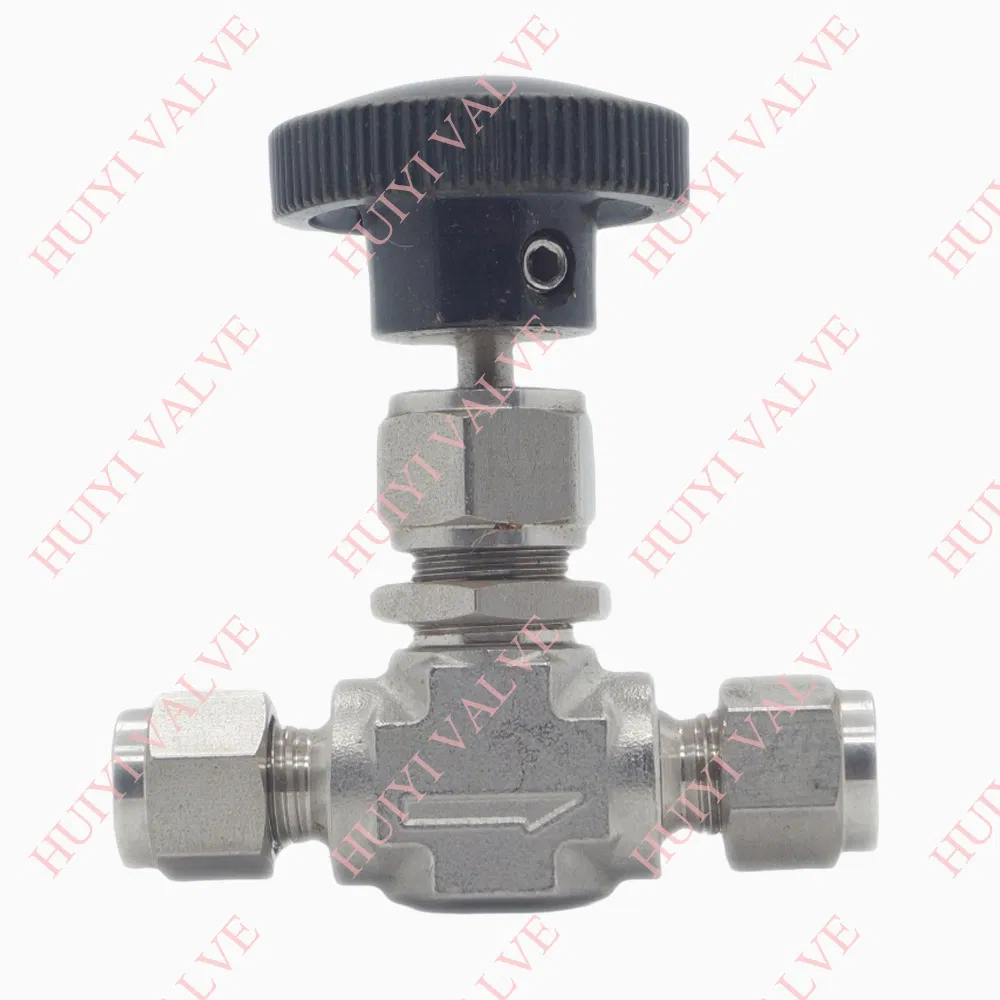

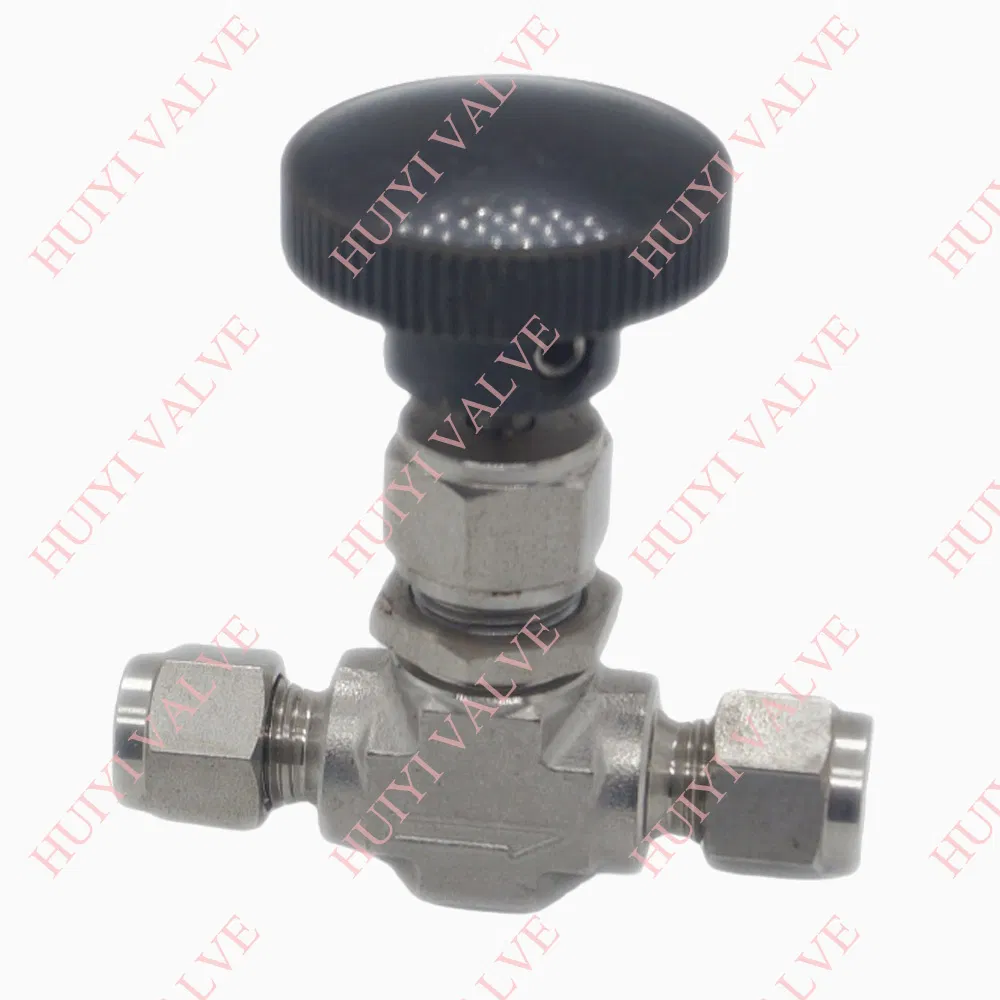

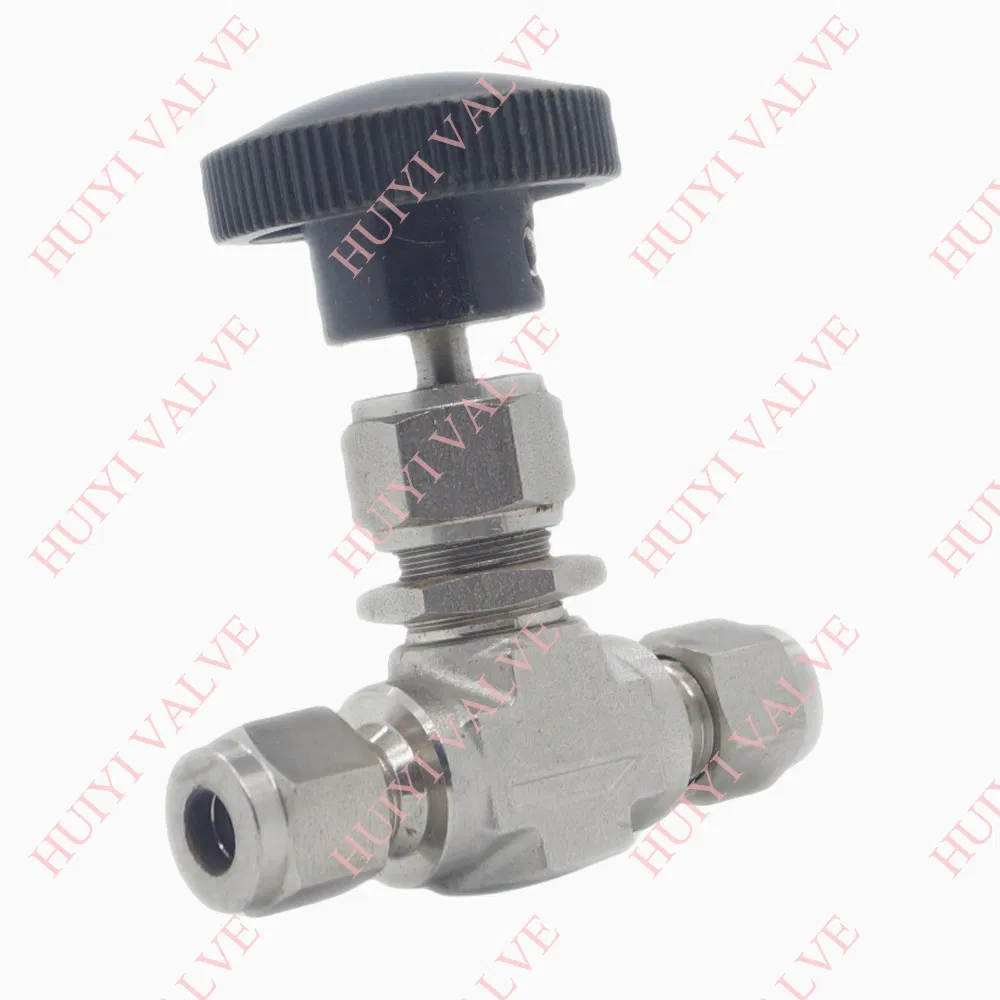

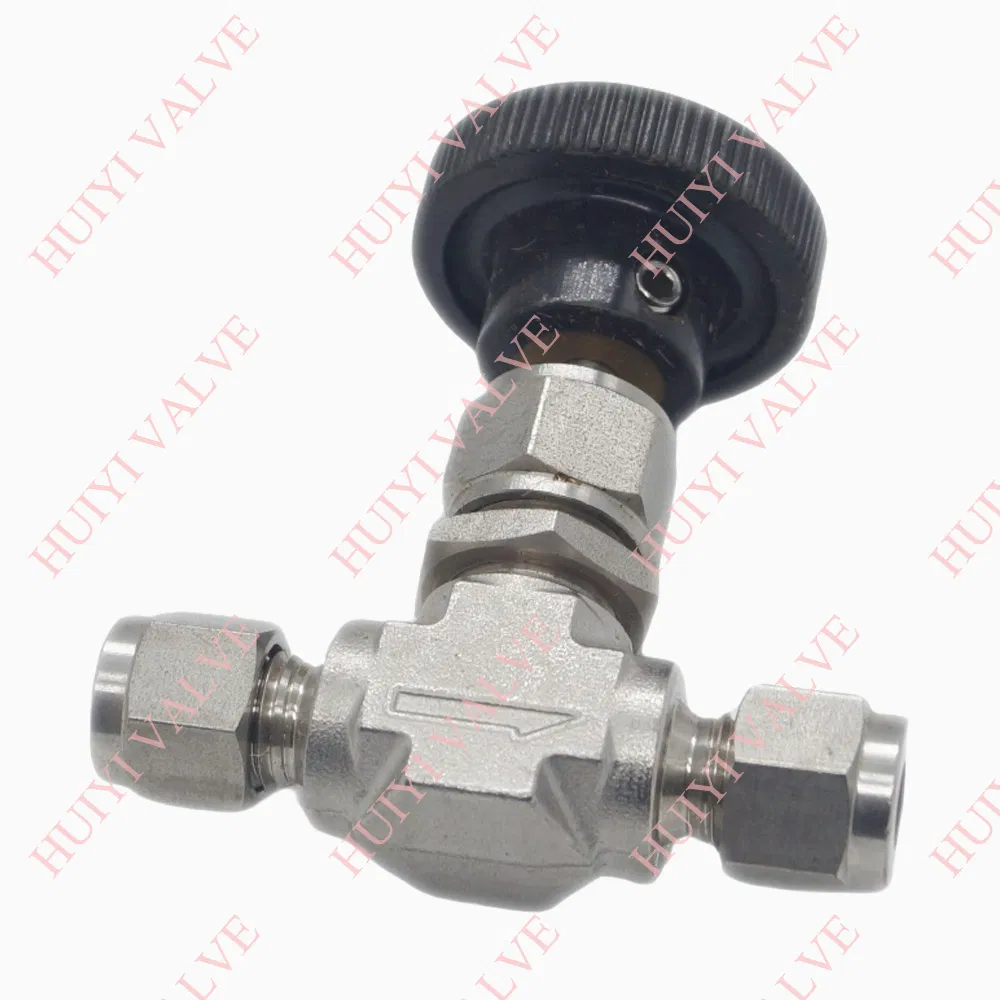

Stainless Steel 304 316L 1/8''-1'' 6000 Psig Manual Gas Needle Valve with Double Ferrules and Customized Knob Handle

1 / 5

Stainless Steel 304 316L 1/8''-1'' 6000 Psig Manual Gas Needle Valve with Double Ferrules and Customized Knob Handle

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.HY-MNFVN-M

MaterialStainless Steel

PressureHigh Pressure

StandardStandard

MediaOil, Gas, Water, Acid Liquid

Media Temp.Normal & High Temperature

PackingPTFE, Graphite, Copper Gasket

Warranty12 Months

Body MaterialSS304, SS316, SS316L

Custom ServiceOEM, ODM

MOQ20 PCS

Max Pressure6000 Psi

Packaging & Delivery

Package Size5.00cm * 5.00cm * 5.00cm

Gross Weight1.000kg

Lead Time 1-50 Sets: 10 days | 51-200 Sets: 15 days | 201-500 Sets: 20 days

Product Description

Product Name	Stainless Steel 304 316L 1/8''-1'' 6000 PSIG Manual Gas Needle Valve
Model No.	HY-MNFNV-M
Type	Double ferrules needle valve
Working Pressure	1000 psi to 6000 psi
Working Temperature	Normal temperature, High temperature
Port Size	1/8" to 1"
Medium	Oil, Gas, Water, Acid liquid
Connection	Double ferrules mini needle valve

Key Features:

✔ Packing bolt and thread are extruded forming for high strength and enhanced usage life.

✔ Double lock pin for the handle, making it tighter and more durable.

✔ Locking pin protects the nut from loosening, preventing leaks.

✔ Stem treated with cold rolling for increased durability.

✔ Back valve seat provides sealing function when full opened.

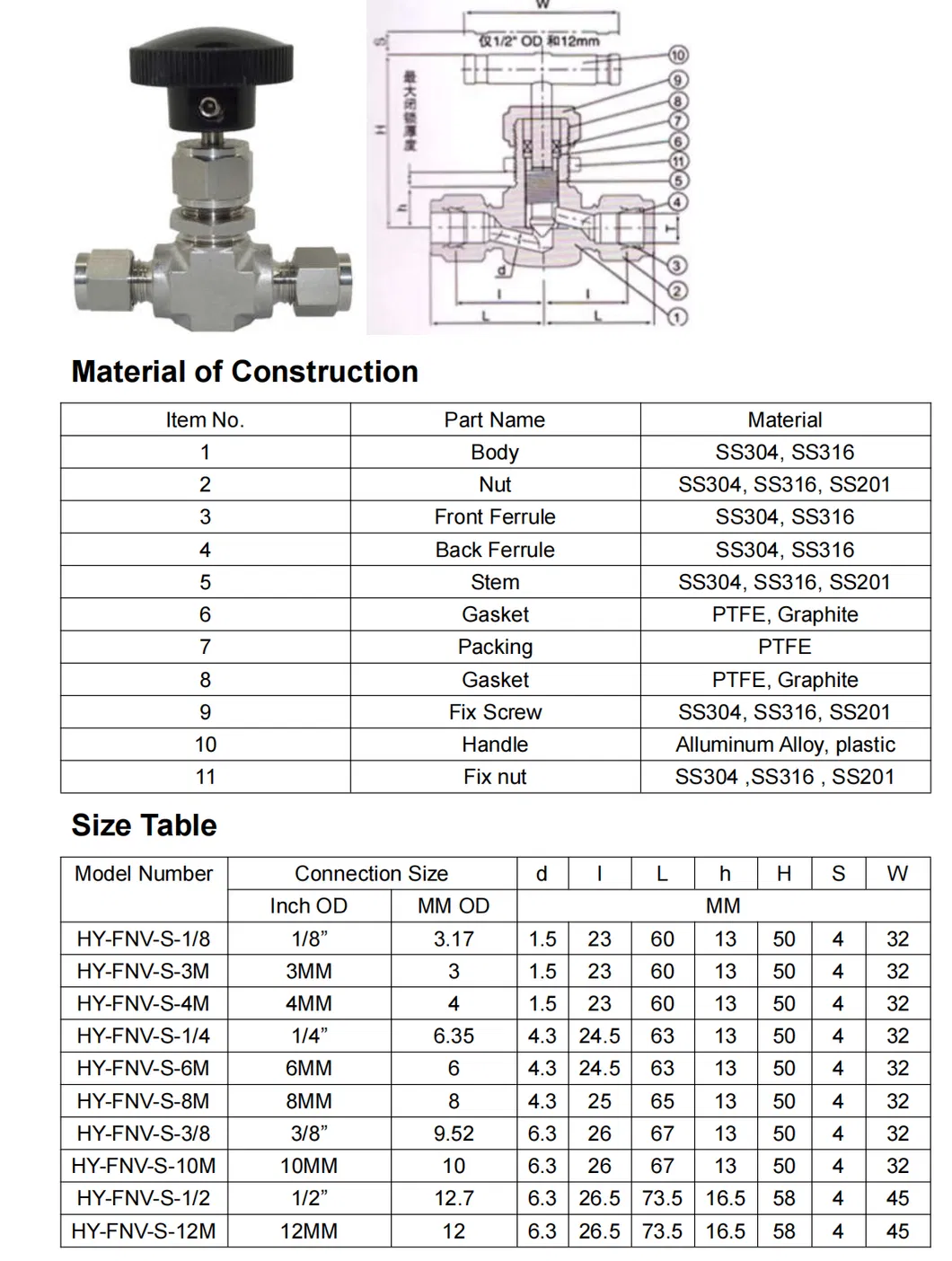

Performance Specifications:

1. Material: Stainless steel, duplex stainless steel, monel 400

2. Working Pressure: Max 6000 psig (413.4 bar)

3. Working Temperature: -65°F to 850°F (-53°C to 455°C)

4. Connection Style: Ferrules

5. Size Range: 1/8" to 3/4", 3mm to 20mm

6. Packing: PTFE, RPTFE, PEEK, graphite and others

Our company integrates design, development, manufacture, and sales of high, middle, and low-pressure valves and fittings. Our professional research and development team ensures every product meets strict industrial standards such as ASME/ANSI/DIN/JIS/GB. We specialize in needle valves, ball valves, and compression fittings produced with materials like SS304, SS316, and SS316L to meet diverse requirements in global markets.

Frequently Asked Questions

Q1: Are you a professional manufacturer or a trading company? A: As a high-tech enterprise, we integrate design, developing, manufacture and sales on stainless steel valve and pipe fittings. We handle the whole procedures from machining to inspecting.

Q2: Do you have stock and what is the lead time? A: For in-stock items, we can send goods within 48 hours. For non-stock items, production takes 5-30 days depending on the order quantity.

Q3: How do you ensure product quality? A: We utilize advanced production technology and quality tracking management methods. Every step is strictly inspected to ensure the highest product quality.

Q4: What should I do if I am unsure which product I need? A: Simply provide us with the working pressure, temperature, and media. We can then suggest the most suitable product or provide our e-catalogue for your reference.

Q5: Can I get a free sample? A: Yes, we can provide samples. Freight fees may apply for initial cooperation, but for long-term partners, we provide free samples and freight.

Q6: Why does the website price differ from the real price? A: Website prices are for reference only. Factors like size, material, quantity, exchange rates, and working conditions affect the final floating price.
